EVAC > EVAC EN54 24 SPEAKERS
CODICE ORDINE: KR-AP52T

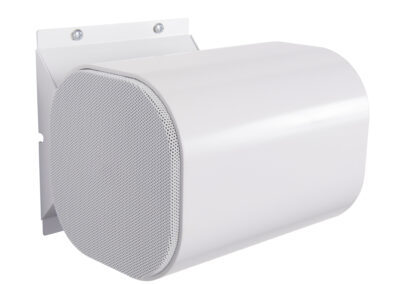

AP52T is an elegant indoor/outdoor bi-directional sound projector featuring an epoxy coated high-grade aluminum extrusion enclosure. It is equipped with two 127 mm (5”) full-range drivers, able to provide an excellent speech intelligibility with wide dispersion, together with a good background music reproduction.
AP52T includes a transformer to operate on 100V and 70V constant voltage systems with three different power taps. In compliance with EN 54-24:2008, it includes a ceramic terminal block and a thermal fuse and it is, therefore, suitable for the use in voice alarm systems.
Thanks to its rugged construction and IP55 protection, this units is suited for both indoor and outdoor application in malls, exhibition centres, railway and bus stations, etc.
AP52T
EN 54-24 Bi-directional Sound Projector ARTIA SERIES
AP52T is an elegant indoor/outdoor bi-directional sound projector featuring an epoxy coated high-grade aluminum extrusion enclosure. It is equipped with two 127 mm (5”) full-range drivers, able to provide an excellent speech intelligibility with wide dispersion, together with a good background music reproduction.
AP52T includes a transformer to operate on 100V and 70V constant voltage systems with three different power taps. In compliance with EN 54-24:2008, it includes a ceramic terminal block and a thermal fuse and it is, therefore, suitable for the use in voice alarm systems.
Thanks to its rugged construction and IP55 protection, this units is suited for both indoor and outdoor application in malls, exhibition centres, railway and bus stations, etc.
ORDER CODE: KR-AP52T
Technical specifications
| System Type | Bi-Directional Sound Projector |
| Drivers | Dual 5″ full range |
| Rated Noise Power 100h | 20 W |
| Power rating @ 100V | 20 / 10 / 5 W |
| Power rating @ 70V | 10 / 5 / 2.5 W |
| Impedance | 500 / 1K / 2K Ω @ 100V 500 / 1K / 2K Ω @ 70V |
| Connector | Ceramic Terminal block |
| Power | selection On Terminal Block |
| Measure Environment | Free Field |
| Frequency Response (-10 dB) | 160 – 12k Hz |
| Sensitivity at 1W (1 kHz, 1m / 4m) | 87.7 / 75.7 dB |
| Sensitivity at 1W (Pink Noise 6dB Crest Factor, 1m / 4m) | 84,7 / 72.7 dB |
| Max SPL (Pink Noise 6dB Crest Factor, 1m / 4m) | 96.8 / 84.8 dB |
| Coverage Angle at 500 / 1k / / 2k / 4k Hz (-6dB) | Hor.: 140° / 160° / 155° / 90° Vert: 140° / 155° / 150° / 90° |
| Cabinet | White (RAL 9016) |
| Material | Aluminium |
| Environmental Type | B |
| Protection Degree | IP55C |
| Operating Temperature | -25 ÷ +55 °C (-13 ÷ +131 °F) |
| Relative humidity | <95% |
| Dimensions (mm) | 140 x 185 x 200 (W x H x D) |
| Mounting | brick/concrete on ceilings/wall |
| Weight | 3.45 kg (7.6 lb) |
| Standard Compliance | EN54-24:2008 |
| Certification | 0051-CPR-1998 |
