COMMERCIAL AUDIO > AUDIO SYSTEMS
CODICE ORDINE: KR-RM88

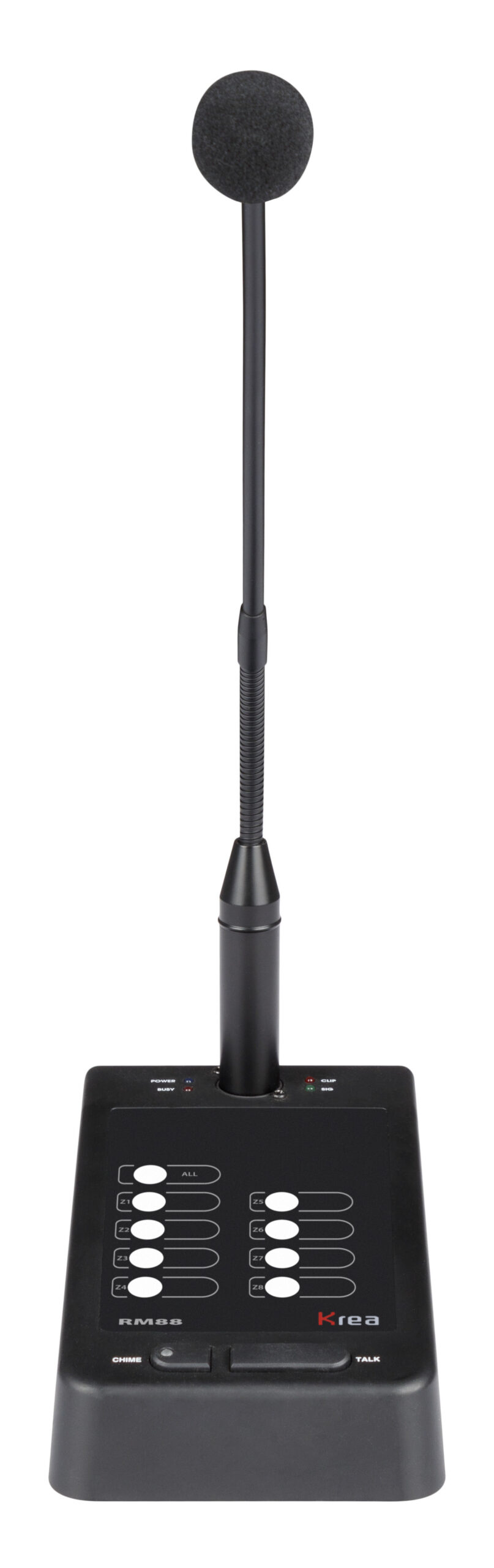

RM88 is the paging microphone basedesigned to be combined with the DMP88 to create a zone system with call on asingle zone, a group of zones or all zones.
RM88
8.ZONE.MICROPHONE.BASE.DMP88
RM88 is the paging microphone basedesigned to be combined with the DMP88 to create a zone system with call on asingle zone, a group of zones or all zones.
ORDER CODE: KR-RM88
Technical specifications
|
Model: |
RM88 |
Connectors |
|
Input |
1x MIC with 12V Phantom Power |
XLR 3 poles Female |
|
Input Max Sensitivity |
-35 dBu |
|
|
Input Impedance |
20 Kohm |
|
|
Frequency Response |
80 Hz / 15 KHz |
|
|
Mic |
1x Gooseneck Electrect microphone |
|
|
Output |
1x LINE |
Phoenix COMBICON MC 1,5/3-ST-3,81 |
|
Output Nominal Level |
0 dBu |
|
|
Output Impedance |
600 ohm |
|
|
THD+N |
< 0.1% at -0 dBu |
|
|
Noise (A-weighted) |
< -90 dBu |
|
|
Controls |
1x MIC Level 1x CHIMES Level 1x CHIMES switch 1x TALK switch 9x ZONE switches |
|
|
Connection |
RS485 |
Phoenix COMBICON MC 1,5/3-ST-3,81 |
|
Operating temperature |
0 ÷ +45°C |
|
|
Power Supply |
+12 V |
|
|
Power Consumption |
100 mA |
|
|
Finish |
Black |
|
|
Dimensions (WxHxD) |
120 x 65 x 200 mm |
|
|
Net Weight |
0.62 Kg 0.75 Kg with gooseneck mic |
|
